Description
Application:
Soft tubes, bottles, jars
Tech-data:
| Parameter\Item | S300M |
| Max.mesh frame size | 400*500mm |
| Max.printing size | dia.70mm |
| Max.substrate diameter | 100mm |
| Printing speed | 1380pcs/h |
| Power | 110/220V 50/60HZ 40W |
Samples:

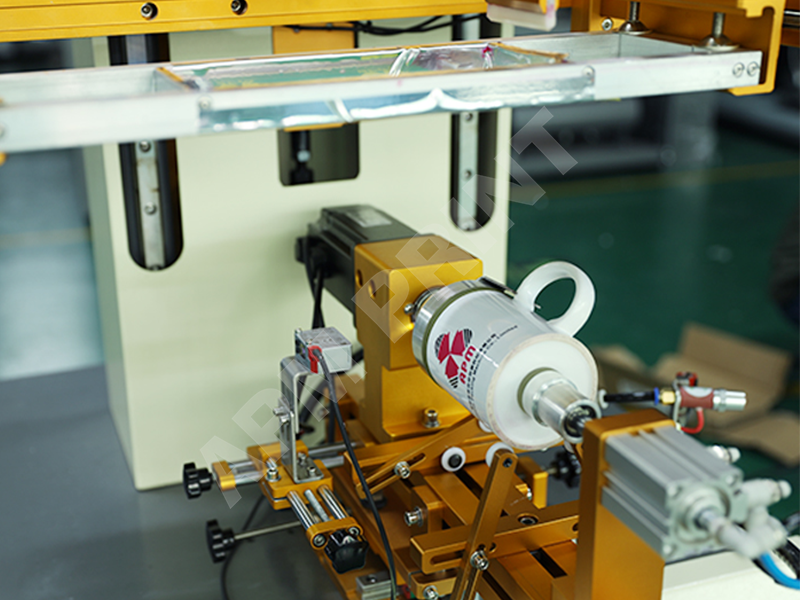

General Description:
1. Servo motor driven mesh frame left/right and servo driven fixture rotate
2. PLC control and Touch Screen display
3. Easy operation, can set the product diameter, speed, printing position in touch screen
4. No need gear, easy change products
5.High quality optical sensor registration
6. Inflation for soft bottles
Application:
Soft tubes, bottles, jars
Tech-data:
| Parameter\Item | S300M |
| Max.mesh frame size | 400*500mm |
| Max.printing size | dia.70mm |
| Max.substrate diameter | 100mm |
| Printing speed | 1380pcs/h |
| Power | 110/220V 50/60HZ 40W |
Samples:

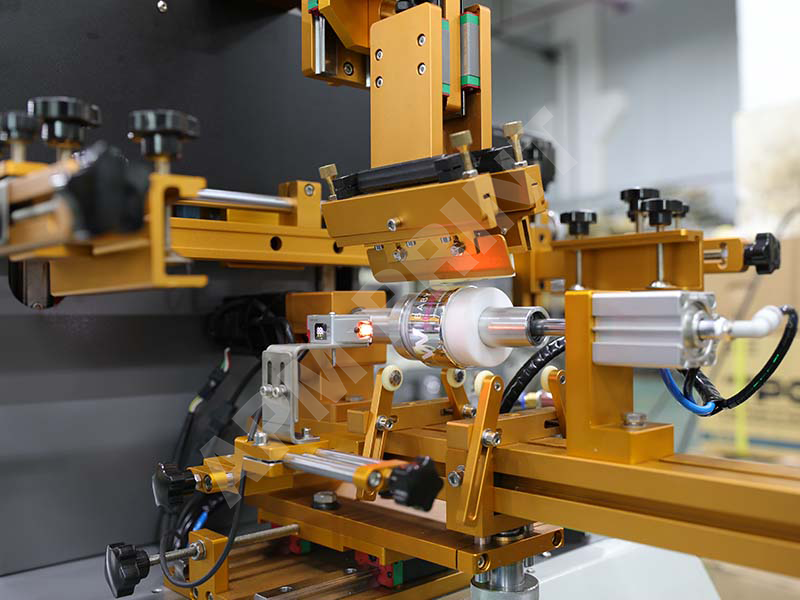

Description:
1.SMC/Festo pneumatics
2.XYR adjusting table
3.Pneumatic printing head lifting system
4.Printing head driven by motor with linear guides
5.Printing head up/down driven by motor
6.Mesh peeled off system
7.Easy operation and well programmed panel
8.Well safety guarding with CE.
